PVC Line Fire Hose
manual fire hose reel

3/4 inch 19mm Manual Fire Hose Reel

1 inch wearable high pressure fire hose reel
Inquiry
Details

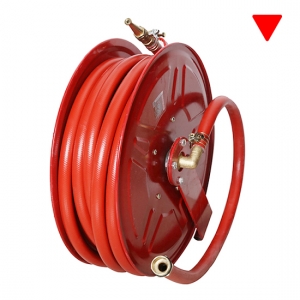

3/4 inch 19mm Manual Fire Hose Reel

1)1.Fire Hose Reels provide a reasonably accessible and controlled supply of water to combat a potential Class A fire risk.Various types of Fire Hose Reels are available to meet specific needs.
2.A control nozzle attached to the end of the hose enables the operator to control the direction and flow of water to the fire.

Suitable for schools, movie theatre, warehouses or anywhere with paper, cardboard, curtains, cloth, wood, carpet


Specification:
1. manual fixed type

2.We can provide length: 10m - 30m or according to your requirement

3.Make according to the GB6246-2001 and CNCA-09C-045:2011 standards.

JPS series Fire Hose Reel is a kind of indoor fixed type fire control facility. Its operation is easy and flexible for people of all ages. This facility is the first choice for fire control in shopping malls, hotels, stockrooms and houses, etc

Fire Hose Reel Specifications
Model & Specification Rated Working Pressure Jetting Test Pressure Jetting Range Flow Hose Inner Diameter Hose Length
(Mpa) (Mpa) (M) (L/min) (mm) (m)
JPS0.8-19/20 0.8 0.4 ≥6 ≥24 19 20
JPS0.8-19/25 25


How To Roll Hose On Reel:


(1)  Lay the hose straight and flat on the ground.(2)  Fold the hose in half laying flat on the ground so that the couplings are together one above the

      other. One half is now laying flat on top of the other half.

(3) Roll the hose on the reel, beginning at the folded end that does not contain the couplings. You

      should end with a nozzle and a female coupling.

(4) Attach female coupling to water source so hose is ready for immediate use. Hose must be

     unrolled  before water valve is opened.

3/4 inch rubber fire hose reel
