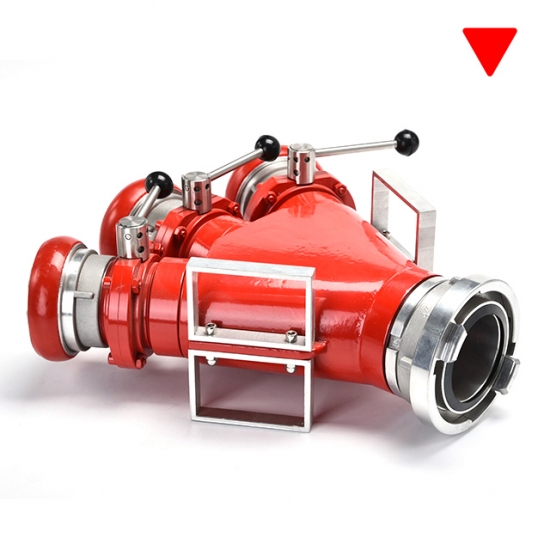

Fire Brigade Three Ways Fire Fighting Water Distributor

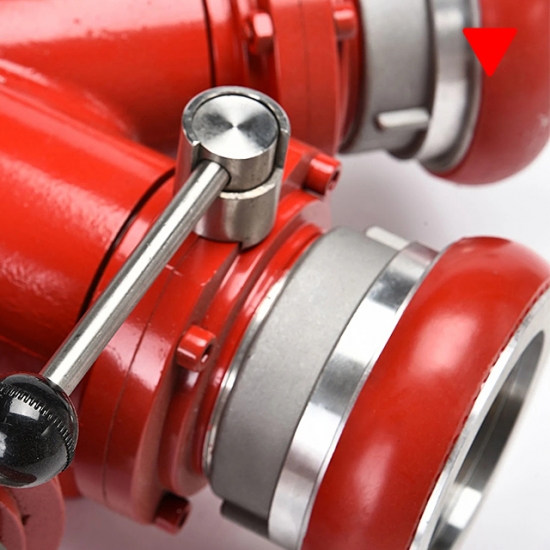

Fire fighting water distributors are used for distributing the extinguishing medium from one feed line over several hose lines, or in special cases for collecting it in the reverse direction. Each hose line can be shut off individually by means of a stop valve. The stop valve of the dividers must be easy operated in the usual flow direction at 16 bar and in the opposite direction at 6 bar.

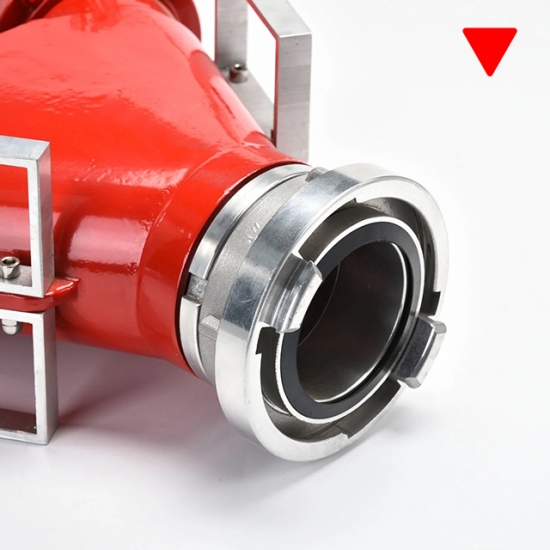

Aluminum construction full penetration welds, one storz 4", 5", 6", 12" connection, three Machino 2.5", 3", 6" connections. Other configurations available consult for your specific requirements.
Other connections are available such as BS336, Storz etc.
Technical Parameters:
| Item | Inlet | Outlet | Valve Type |
| Three Ways Water Distributor | DN65 | DN65*3 | Ball Valve |
| DN80*3 | |||
| DN80 | DN65*3 | ||
| DN80*3 | |||
| DN100 | DN65*3 | Butterfly Valve | |
| DN80*3 | |||
| DN125 | DN65*3 | ||
| DN80*3 | |||
| DN150 | DN65*3 |
Gate Valve |
|
| DN80*3 | |||
| DN300 | DN150*3 | Butterfly Valve |
