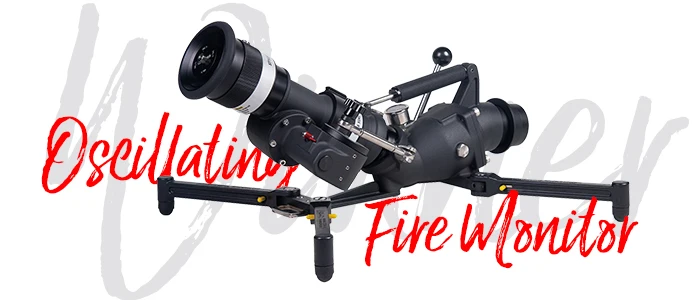

Fire Fighting Portable Oscillating Fire Monitor
1. Product Introduction

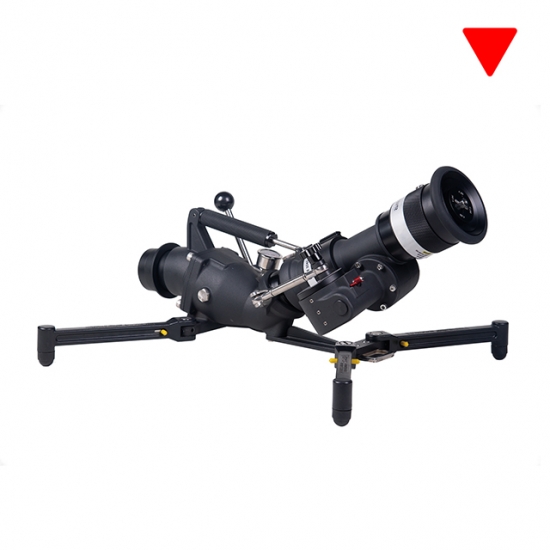

Oscillating portable monitors are extremely compact and lightweight lending itself to easy one-man deployment. Once sited in the optimum position to target the risk the monitor can be left unmanned thanks to its low profile, stable design saving on man power.
Widely used by Professional Fire Services the oscillating portable monitor is suited to a wide range of industry sectors including Fuel Storage Sites, Petrochemical Facilities, Waste Recycling & Bio-Mass Plants, Timber Yards and multiple Marine applications.

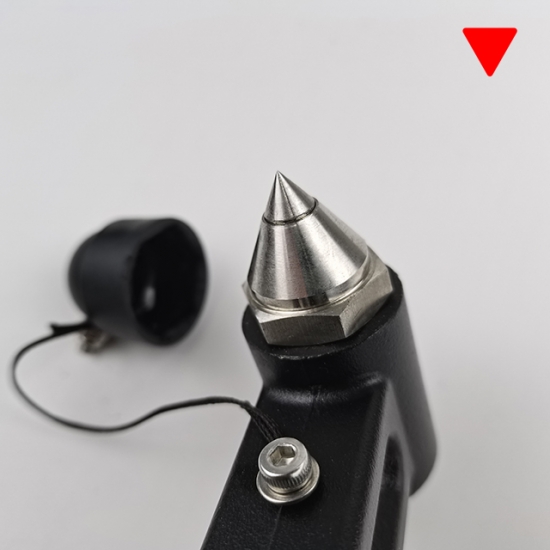

The spiked legs aid grip on most surfaces and fold away neatly after use for ease of stowage. Elevation between 20° and 80° is possible with rotation via a water-driven motor which sweeps the nozzle side to side automatically at 20°, 30° or 40°. This function can be disengaged to allow a wider sweep.
Supplied as standard with 2½” BSP female BSP inlet, the oscillating portable monitor can be fitted with any International inlet adaptors for compatibility to existing hose lines.
Impresses with
- Simple & Quick Operation
- Automatic Oscillation
- Highly Manoeuvrable
- Unmanned Operation
- Compact & Lightweight
- Adjustable Elevation & Rotation

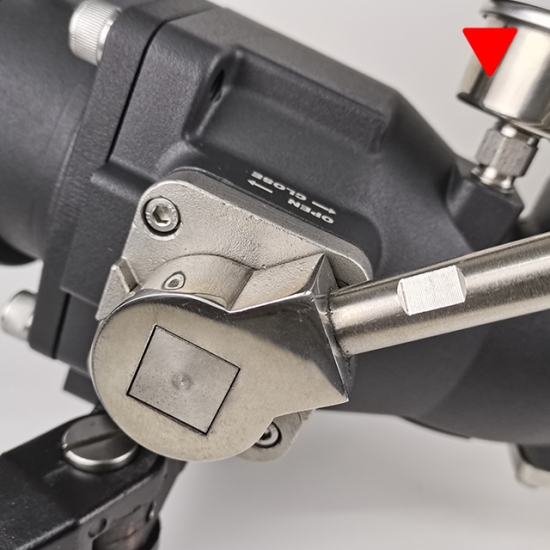

- Ball Shut-Off with Locking Handle
- Available with all International Inlet Fittings
2.Product Parameter
| Model | Rated Working Pressure (Mpa) | Working Pressure Range (Mpa) |
Rated Flow (GPM) |
Range (m) | Elevation | Oscillating |
| PSM600 | 0.8 | 0.5~1.0 | 300-600 | ≥65 | 20°~60° | 20°, 30° or 40° |
